Product Overview

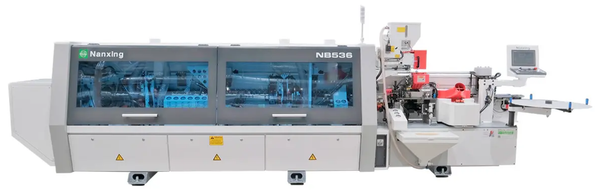

The Nanxing NB536 Automatic Edge Banding Machine is a top choice for furniture manufacturers looking for a reliable, high-performance industrial edge bander built for continuous production and superior finishing quality.
Designed as a true industrial workhorse, the NB536 combines 8 essential edge banding functions: Pre-Milling, Pre-Heating, Gluing, End Cutting, Fine Trimming, Corner Rounding, Scraping and Buffing. The pre-milling unit prepares the panel edge before banding, while pre-heating improves the conditions for strong and consistent edge tape bonding.
For a premium finished appearance, the NB536 features a 2-motor corner rounding unit, automatically processing the front and rear corners of the edge-banded panel for a smooth and professional finish.
With a production speed of up to 24m/min, the Nanxing NB536 is designed for high-volume furniture and cabinet production where speed, accuracy and consistent finishing are essential.
The machine also comes equipped with cleaning and release spraying units, helping to minimise glue residue, keep the processed panel cleaner and improve the overall quality of the finished workpiece.
The Nanxing NB536 industrial edge banding machine is ideal for professional furniture factories processing MDF, MFC, particle board, plywood and other compatible panel materials. It is particularly suitable for the production of kitchen cabinets, wardrobes, office furniture, custom cabinetry and other panel furniture.
For furniture manufacturers looking for an automatic edge banding machine in Nigeria with pre-milling, pre-heating and corner rounding, the Nanxing NB536 delivers the speed, finishing quality and industrial performance required for demanding furniture production.
Technical Data
|
Panel length: |
≥120 mm |
|
Panel width: |
≥60 mm |
|
Panel thickness: |
9 - 60 mm |
|
Edge tape thickness: |
0.4 - 3 mm |
|
Feeding speed: |
16 / 20 / 24 m/min |
|
Power supply: |
380 V; 50 Hz; 3 Phase |
|
Air pressure required: |
0.6MPa |
|
Operation system |
7’’ touch screen |
|
Dust collector |
Ø125 mm (5 inches) |
|
Total power: |
22kw |
|
Approx. weight: |
2260kg |
