Nanxing MJ1132F Sliding Table Panel Saw

Write a Review

Call or Email for Pricing (08083591059)

In stock
1,000.00 KGS
Cutting length:
0°cutting thickness:
45°cutting thickness:
Main saw rotating speed:
Main saw motor:
5.5kw (7.5hp)
Scoring saw rotating speed:
Scoring saw motor:
1.1kw 1.5hp)
Saw blade tilting:
0-45° (via manual hand wheel)
Dust extraction:
Total power:
Overall size:
Net weight:

Product Overview

Sliding table saw (panel saw) MJ1132F makes cutting/sizing of panel boards easy and flexible. Powerful saw blade motors, smooth-running sliding table, precise guiding rail and tilt adjustment knob are some of the features that differentiates this workhorse. The height of saw blade can be adjusted electrically while blade tilting is done manually. The main saw blade rotates at speeds of up to 5200rpm and max. cutting length of workpiece is 3100mm. The machine cuts a versatile range of panel products including MDF, HDF, Acrylics, VCB, Composite Boards, etc.


  • Strong machine body with most mechanical machine parts are produced by advanced CNC machines for higher stability and longer service life without deforming
  • 7.5hp main saw motor with variable speed and 1.5hp scoring blade motor for that impecable cut finish
  • Height of saw blade can be adjusted electrically with a button
  • Main saw and scoring saw can tilt within 0-45°by using hand wheel
  • Optional MJ1138F for your choice for cutting max 3700m panel boards

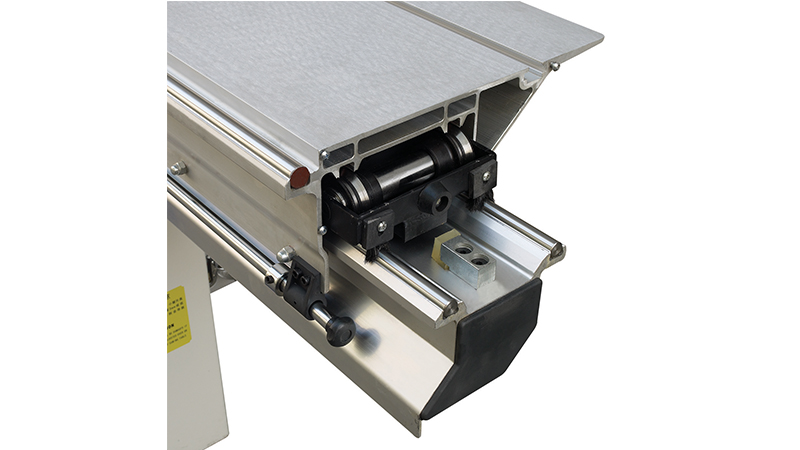

Nanxing Sliding Table Saw Solid Sliding Table with high tensile stregth Solid sliding table with high tensile strength for durability and reliability
Rigid rip fence for precision cutting along board grain Rigid Rip Fence
Industrial-grade table panel Industrial-grade table plate for added ruggedity
Easy to reach tool rack for convenient storage and retrieval

Warranty Information

The machine(s) purchased is (are) under warranty cover of its (their) components excluding electrical components and consumable parts for 12 months (if installed by GDX Equip-approved engineers) or 3 months (if installed by Customer) from date of pick-up/delivery. Damaged parts under normal use and maintenance but outside normal wear and tear within the warranty period will be provided at no cost. Please note Customer bears cost of pick-up/delivery and installation of any replacement part under warranty.
